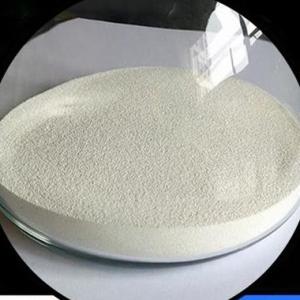

Ceramic beads blasting media B60 for Casting forged welded heat-treated blast clean
DESCRIPTION
The ceramic beads are made of zirconium sand mineral through electric fusion, with fine internal structure of zirconium crystals in a glassy silicon dioxide cover, thus have high density and high impact resistance features.
It’s high quality blasting media, suitable for surface cleaning and deburring, and precise surface treatment on stainless steel, non-ferrous metals, and Aluminum alloy work pieces, etc..
SPECIFICATION
| Chemical Index | ZrO2 | SiO2 | Al2O3 |
| 60-65% | 25-30% | 7-13% |
| Typical Value | 62.20% | 26.10% | 9.05% |
| Bulk Density | 2.3g/cm3 |
| Specific Density | 3.85g/cm3 |
| Vickers Hardness | 700HV |
Sizes
| B20 | B30 | B40 | B60 |
| 600-850µm | 425-6000µm | 0250-425µm | 125-250µm |
| B80 | B120 | B170 | B205 |
| 180-250µm | 63-125µm | 45-90µm | 0-63µm |
Special sizes available against clients’ requirement.
FEATURES
Our ceramic beads is of top quality in China, and has below features
1) Imported raw materials, High quality ceramic beads
Use Australia imported high-quality raw materials to produce ceramic beads, high hardness, good elasticity and higher service life.
2) Independent research and development
Complete product testing equipment and complete independent intellectual property rights, as well as independent laboratories and university cooperative laboratories in Beijing and Shijiazhuang.
More importantly, we have years of continuous improvement in R&D team.
3. Better cleanliness and sizes more concentration
We have our own particle sizes distribution standard, with more concentration granules and can screen as per clients’ requirement.
4. High hardness, long life and good elasticity
The hardness of ceramic beads is high,and the deformation is small.
The hardness of ceramic sand can 700 HV, it ensures that ceramic bead can be shot peened for high strength and high strength structural parts. Small deformation ensures that the shape of the projectile does not change during impact, and the spherical shape of the ceramic sand improves the quality stability of the shot peening of the part.
APPLICATION
Casting and forging parts, welded parts, heat-treated parts - Sandblast Cleaning
Ceramic beads sand blasting can clean all the dirt on the surface of the casting, forging and welding workpiece , such as oxide scale and oil stain, and polish the surface of the workpiece to improve the smoothness , and to beautify the work piece surface.
Sand blasting can make the workpiece exposed uniform metallic color, making the appearance of the workpiece more beautiful.
Other application like Sandblasting finishing, Surface cleaning, Surface Pretreatment and Renovation of old work parts etc..
APPLICABLE EQUIPMENT
Suitable sand blasting machine:
Manual sand blasting machine, Automatic sand blasting machine,
Open type series of sand blasting machine, and Blasting room series.
